Upgrading One User Installation, 2023

You have received an email message about the program’s main version upgrade.

• The message has been sent to the person that has been marked as the Technical contact person in the customer register of Vertex Systems Oy.
• The message includes a download link to the installation package and, if necessary, a download link to the program protection file (LICENSE.TXT) or the license server protection file file lt_llist.

Downloading the installation package:

• Follow the instructions you have received to download the installation package, and save it to the C:\TEMP folder, for example.
• Extract the compressed file as follows, for example: select the file and Extract All... from the right-click menu. (Extract All…).

Downloading the protection file:

• The protection file is not needed, if a NetVID license or a license server is used.
• The download link is of the format: http://support.vertex.fi/lic/XXXYYYZZZ/LICENSE.ZIP.
• Extract the zip file to access the protection file LICENSE.TXT. Save the file to C:\TEMP, for example, to wait until the upgrade program asks for it.

If a local license server is used

The upgrade program asks for the license server and the port number.

This data can be found from the keyword lserver= in the SETUP file in the user’s home directory.

• For example:
  C:\vertex\vxg4\user\setup
  lserver= "SERVER:2003"

Start the upgrade

• Double-click the installation program install.exe in the installation package.
• Confirm the installation if prompted by Windows.

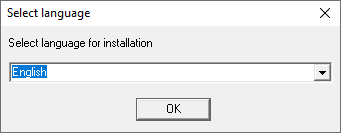

Select the language

• Select the same language that was used when the program was installed earlier.
• Please note, that there are separate upgrade packages for Finnish and English, for example.

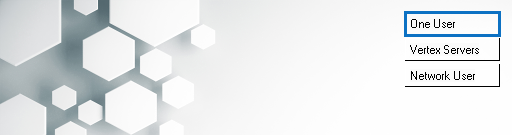

Select One User

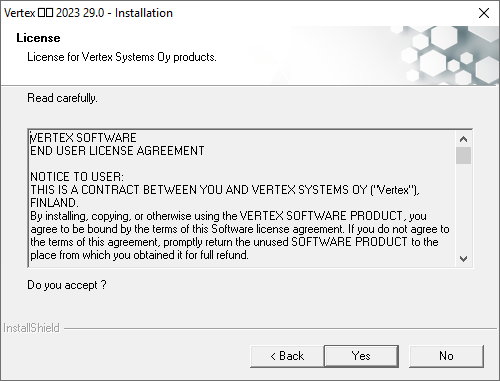

Accept the license agreement

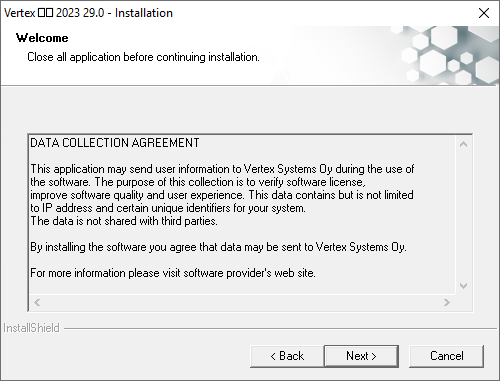

Accept the data collection agreement

The program sends user information to Vertex Systems Oy during the use of the program.

• This data is used for verifying the software license (NetVID license).
• The data is also used for improving the software quality and user experience.
• This data contains but is not limited to IP address and certain unique identifiers for your system.

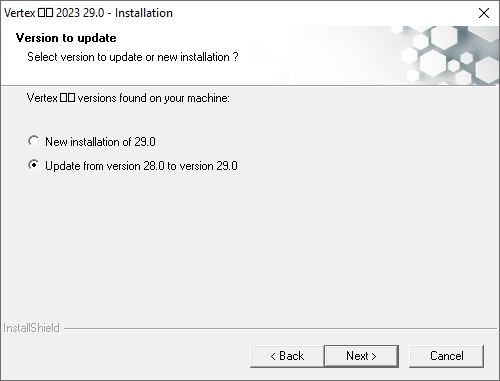

Select Update from version

• Note: If this question does not come up, but the program only proposes installation, stop the upgrade.
• If the question does not appear, the Vertex CAD program in question has not been installed on your computer, or the installation program cannot find a correct entry about the installation in the Windows registry.
  • Upgrade according to the instructions Upgrade Across Multiple Versions.

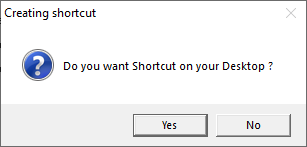

Shortcut icon

• Select a shortcut icon to be added on your desktop. Select Yes, if you want a shortcut icon for the program on your desktop.

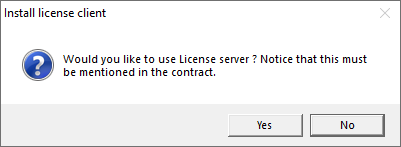

Select whether to use a license server

• Select No, if you use NetVID licenses.
• Select No, if you use HASP modules and LICENSE.TXT protection files on workstations.
• Select Yes, if you use the License Server.

License Server is not used

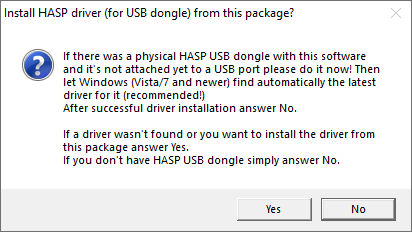

The installation program asks if the HASP driver included in the installation package is installed.

Skip installing the HASP driver

• If you are using a NetVID license, select No.
• If you are using a HASP module, select No. The driver has already been installed earlier and you do not have to reinstall it.

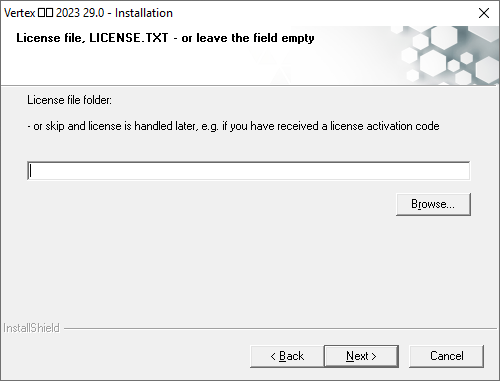

The location of the license file

• If you are using a NetVID license, skip this step.
• Enter the location of the protection file LICENSE.TXT, if you use a HASP protection module.
• You can also copy the license file to the user folder after the installation. In this case, skip the question by selecting Next.

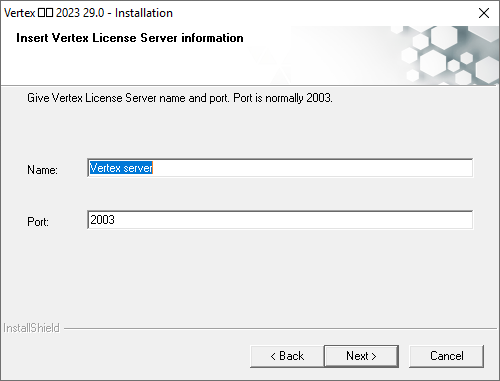

License Server is used- enter the License Server information

• Enter the name of the computer workings as the server and the port number.
• This information can be found in the file
  \\SERVER\vertex\vx[..]_srv\user\setup.clt
  from the keyword lserver=
• For example:
  \\SERVER\vertex\vxg4_srv\user\setup.clt
  lserver= "SERVER:2003"

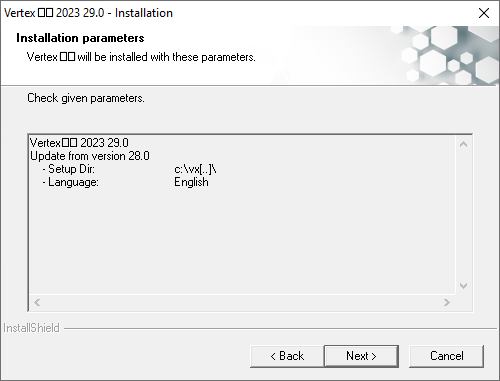

Check the installation data

• The program shows the installation data, including the installation directory, selected language and the license server (if it was selected).
• Click Next.
• The installation starts and the program notifies you:

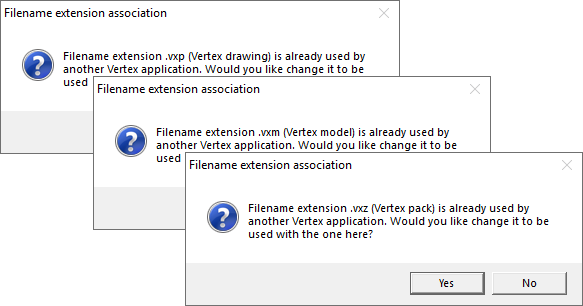

File extension association

• If the Vertex file extensions (.vxp, .vxm, .vxz) have already been associated to a Vertex program, the installation program asks if you would like to change the association to the program now being installed.
• If you are upgrading the same application, select Yes.
• If you are using different Vertex applications (for example BD and G4), select the association according to the application you mainly use.

Upgrade event

• The program uninstalls Vertex.
• Here, the program removes the vx[..]/system folder, but leaves the vx[..]/shared, vx[..]/custom and vx[..]/user folders intact.

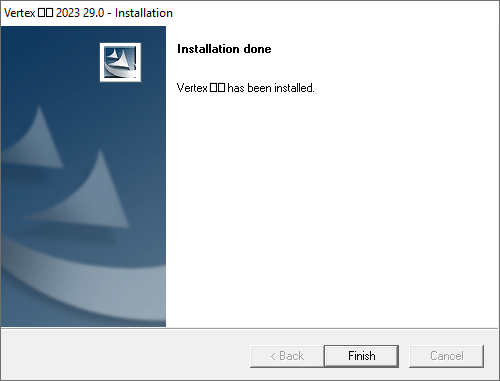

Installation done

• Confirm by clicking Finish.
